4.0 MM Military Defensive Hesco Barriers Defensive Bastion Barriers For Arab Metal Fences

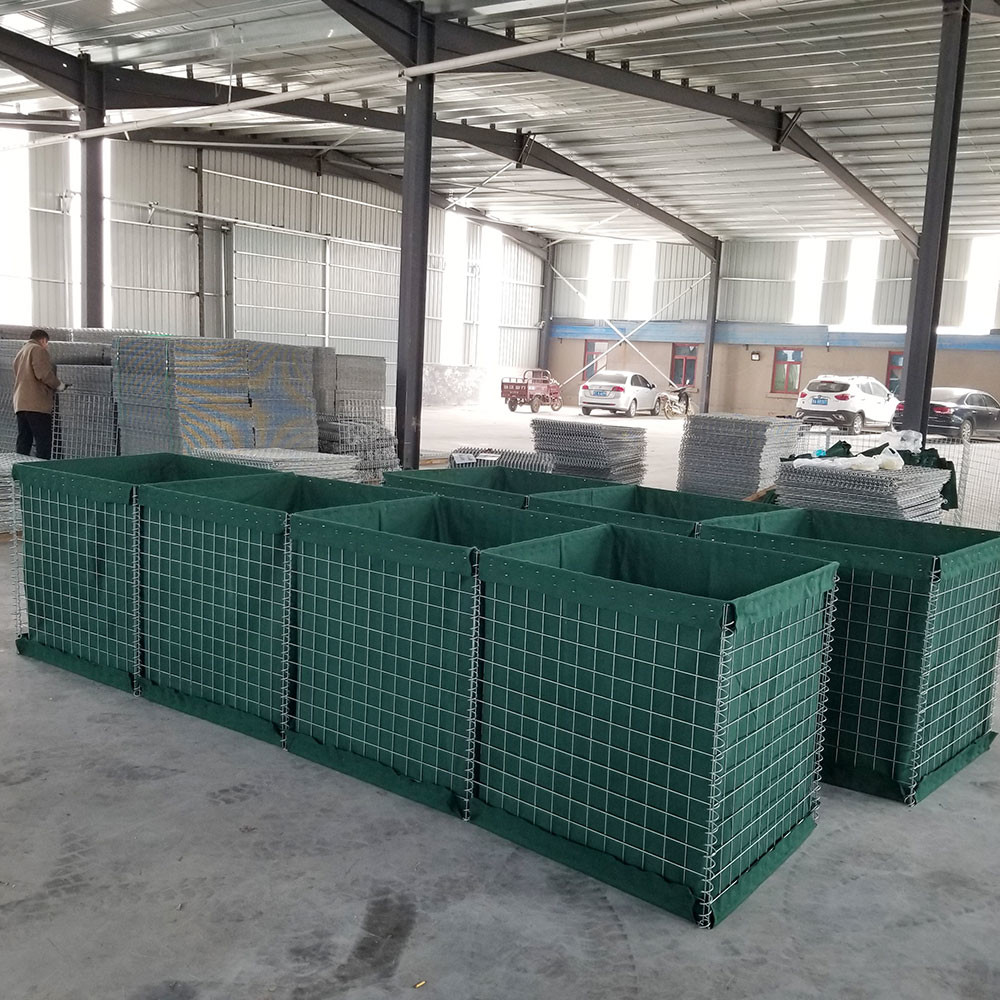

Military Defensive Hesco Barriers Defensive: prefabricated,multi-cellular system, made of zinc coated steel welded mesh and lined waith non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,like a defence wall or bunker,it is widely used for fortification and flood control.
The Technical Specifications from KN-1 to KN-19
| KN MIL 1 | 4'6" (1.37m) | 3'6" (1.06m) | 32'9" (10m) | 5+4 cells | | KN MIL 2 | 5+4 cells | 2' (0.61m) | 4' (1.22m) | 2 cells | | KN MIL 3 | 3'3" (1.00m) | 3'3" (1.00m) | 32'9" (10m) | 5+5 cells | | KN MIL 4 | 3'3" (1.00m) | 5' (1.52m) | 32'9" (10m) | 5+5 cells | | KN MIL 5 | 2' (0.61m) | 2' (0.61m) | 10' (3.05m) | 5 cells | | KN MIL 6 | 5'6" (1.68m) | 2' (0.61m) | 10' (3.05m) | 5 cells | | KN MIL 7 | 7'3" (2.21m) | 7' (2.13m) | 91' (27.74m) | 5+4+4 cells | | KN MIL 8 | 4'6" (1.37m) | 4' (1.22m) | 32'9" (10m) | 5+4 cells | | KN MIL 9 | 3'3" (1.00m) | 2'6" (0.76m) | 30' (9.14m) | 6+6 cells | | KN MIL 10 | 7'3" (2.21m) | 5' (1.52m) | 100' (30.5m) | 5+5+5+5 cells | | KN MIL 11 | 4' (1.22m) | 12" (0.30m) | 4' (1.22m) | 2 cells | | KN MIL 12 | 7' (2.13m) | 3'6" (1.06m) | 108' (33m) | 5+5+5+5+5+5 cells | | KN MIL 13 | 9' (2.74m) | 3'6" (1.06m) | 10'5" (3.18m) | 6 cells | |
The Application for Defensive Hesco Bation Barrier:
1. Military Fortifications
2. Shooting Range
3. Perimeter Security

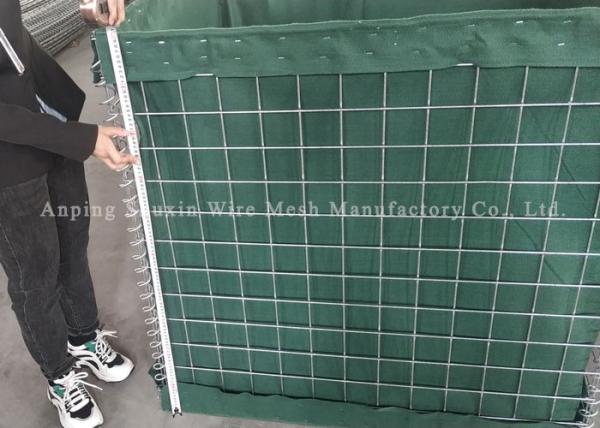

The frame is made of high-strength galvanized steel wire welded together, offering exceptional strength and durability.

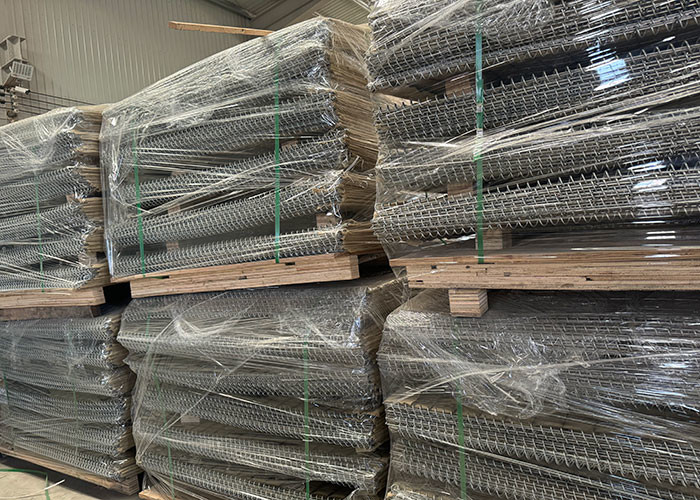

It can be folded when not in use or transported and unfolded when deployed, making it very flexible.
Panel Size : 0.61×0.61m, 1x1m, 1.2×1.2m, 1.5×1.5m, or Customize to request.
Wire Diameter : 3~6mm Galvanized steel wire
Mesh Size : 2″x 2″, 3″ x 3″ (76.2mm x 76.2mm), 4″x 4″

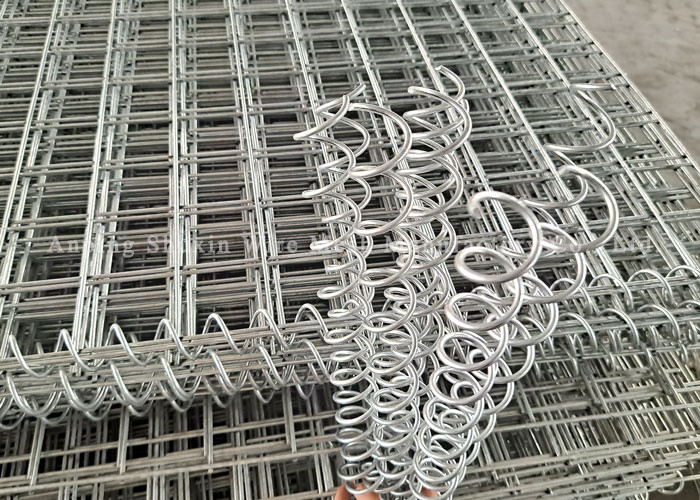

Spring Wire Diameter : 3~6mm Hard steel wire
Joining Pins : 3~6mm Galvanized hard steel wire
Surface Treatment : Hot dipped galvanized, Electro galvanized, Al+Zn Alloy Wire
Non-woven Geotextile Lining
The interior non-woven geotextile lining is used to fill with soil, sand or other filling materials to provide additional protection and stability.
Materials : Heavy-duty non-woven polypropylene cloth
Weight : 200g/m², 300g/m², 400g/m²
Colors: It is usually beige, but can also be customized as olive green or white
Connection Accessories
Using these connectors, individual fort units are connected to form a continuous defensive barrier.
