Hingh Quality Hexagon PVC Coated Gabion Wire Mesh Basket For Preventing
Gabion basket also named gabion box, is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron.

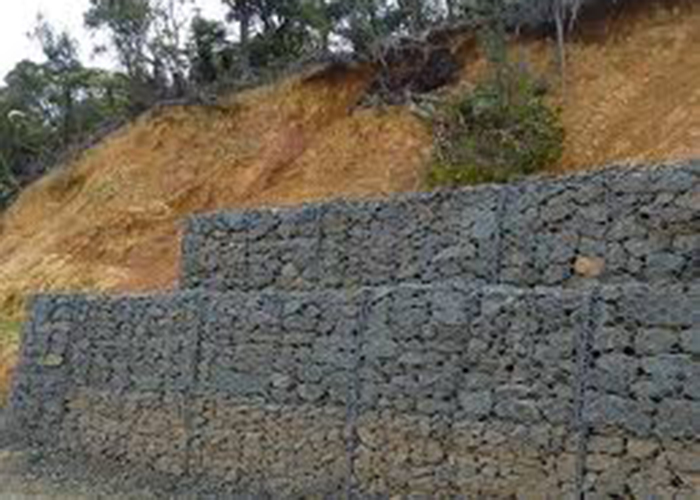

Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.
Gabion Specification :
Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire
Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.
Gabion size : 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,
5x1x0.3m,6x2x0.3m etc.,customized is available.
Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized
Gabion application: can be widely used in flood controlling,retaining wall,river bank protection,slope protection
| Gabion box (mesh size): 80*100mm 100*120mm | Mesh Wire diameter | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Edge wire diameter | 3.4mm | zinc coating:60g,245g, ≥270g/m2 |
| Tie wire diameter. | 2.2mm | zinc coating:60g,≥220g/m2 |
| Gabion mattress (mesh size): 60*80mm | Mesh wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 |
| Edge wire diameter. | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Tie wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 |
| special sizes Gabion are available | Mesh wire diameter | 2.0~4.0mm | superior quality,competitive price and considerate service |
| Edge wire diameter | 2.7~4.0mm |
| Tie wire diameter | 2.0~2.2mm |
Gabion wire mesh basket advantage
Economic. Just fill the stone into the gabion and seal it.
Easy to install.
High zinc coating thus anti-rust and anti-corrosive.
Low cost and High security.
Good permeation can prevent the damage by hydrostatic pressure
Less transport freight. It can be folded together for transport and further installation.
Gabion basket application:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Gabion box Features
Strong structure, flat surface, good corrosion resistance, oxidation resistance, etc.
Construction steps
The construction combination and stone filling steps can be summarized as follows: Each unit structure is combined before placement The structure of the pad combination is placed at the construction site, and the cell structures are connected by tie wire. Rock fill in structure Cover the structure and fasten it with tie wire.
